ANT150F6 SERIES – Omnidirectional Collinear Antenna 138-175 MHz


+ -

Product Description

The ANT150F6 SERIES – Omnidirectional Collinear Antenna 138-175 MHz, is an extremely rugged, medium-gain, fiberglass collinear antenna, designed for operation in all environmental conditions. The antenna is constructed with brass and copper elements, connected at DC ground potential for lightning impulse protection. All junctions are fully soldered to prevent RF intermodulation, and each antenna is completely protected within a high-tech, flexible radome to ensure survivability in the worst environments.

The ANT150F6 includes an ANTC482 dual clamp set for mounting to a 1.5” to 3.5” O.D. support pipe. Stand-off and top mounts are also available.

Download Data Sheet

Additional Information

Weight 65 lbs

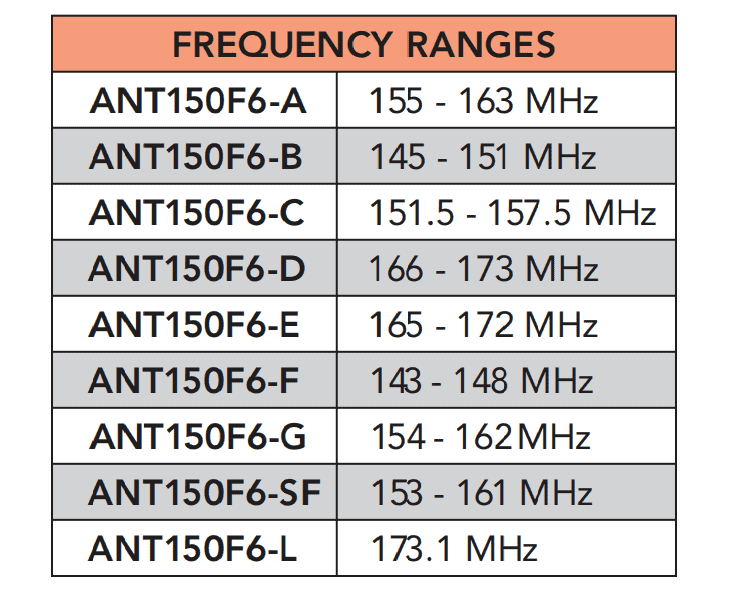

ANT150F6-A, 155-163 MHz, ANT150F6-B, 145-151 MHz, ANT150F6-C, 151.5-157.5 MHz, ANT150F6-D, 166-173 MHz, ANT150F6-E, 165-172 MHz, ANT150F6-F, 143-148 MHz, ANT150F6-G, 154-162 MHz, ANT150F6-SF, 153-161 MHz, ANT150F6-L, 173.1 MHz, ANT150F6-1, 138-144 MHz, ANT150F6-2, 144-151 MHz, ANT150F6-3, 150-157 MHz, ANT150F6-4, 156-164 MHz, ANT150F6-5, 158-166 MHz, ANT150F6-6, 161-168 MHz, ANT150F6-7, 167-172.5 MHz, ANT150F6-8, 171-175 MHz
